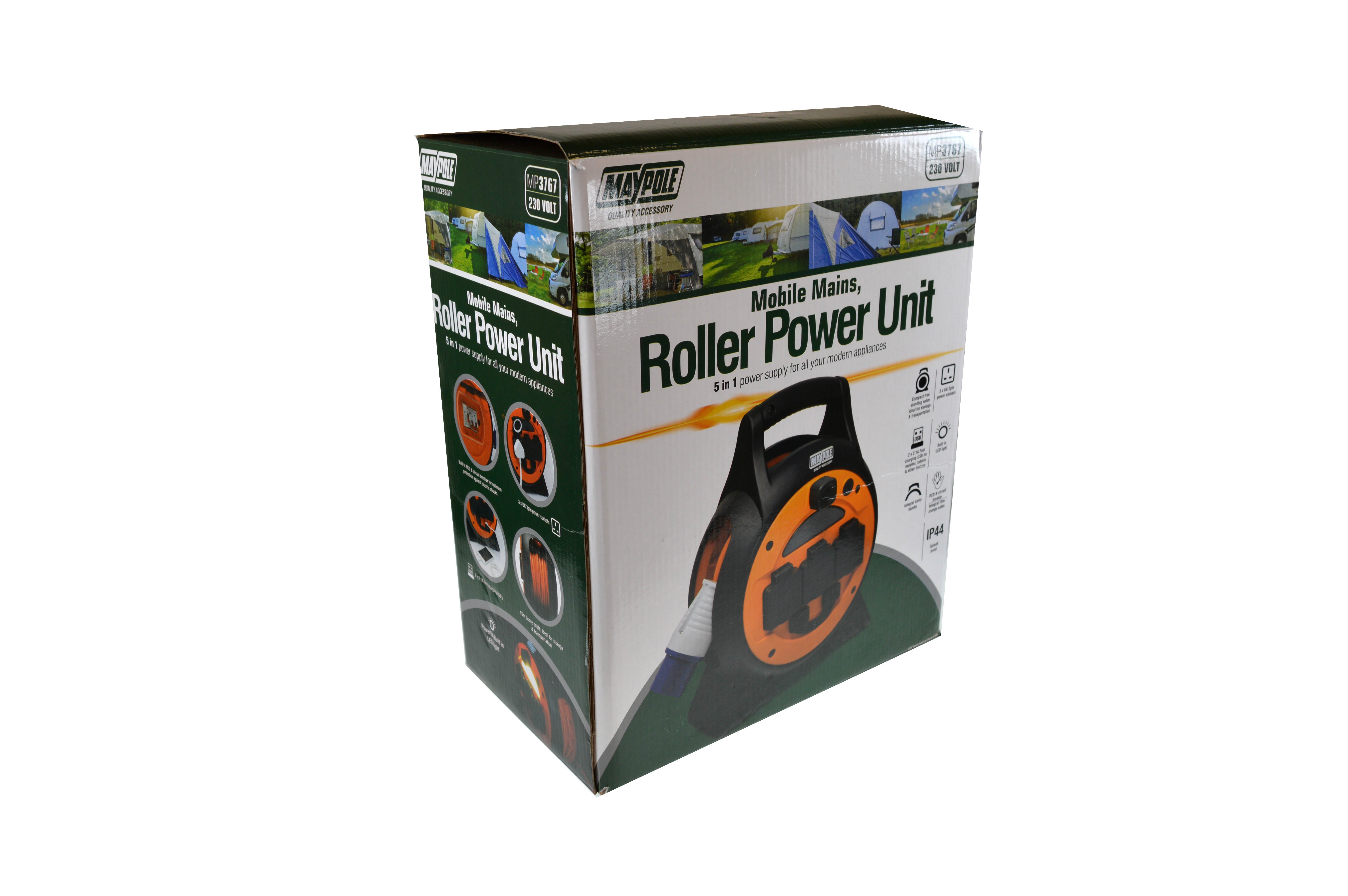

Maypole 15m Roller Mobile Mains Power Unit With Led Light

MAYPOLE MP3767 15M Roller Mobile Mains Power Unit With LED Light

PRODUCT DETAILS:

• MP3767 15m roller mobile mains power unit with LED light is a 5 in 1 power supply for all your modern appliances
• Compact, free standing roller ideal for storage or transportation
• 2 x 2.1A fast charging USB for mobiles, tablets and other devices
• 3 x UK pin power sockets
• Built in RCD and circuit breaker for optimum protection against electric shocks
• Built in powerful LED light
• Integral carry handle
• Integral 15m 3 core orange cable
• IP44 splash proof


SPECIFICATION:

Cable length: 15m

Overload protection :10A twin pole C type MCB

Residual current protection: 25A 30mA RCCB

Supply voltage (nominal): 230VAC 50Hz

Connection type: 16A EN60309 plug

Cable length: 15m

USB outlets: 2 x type A

USB output: 2.1A (lamp off) 1.6A (lamp on)

IP rating: IP44

Weight (kg): 3.62

Dimensions (mm): 340(H) x 280(W) x 140(D)

​

INSTRUCTIONS:

In order to ensure correct and safe usage of your extension reel, you should read these instructions carefully. Please store these instructions for future reference.

Before each use

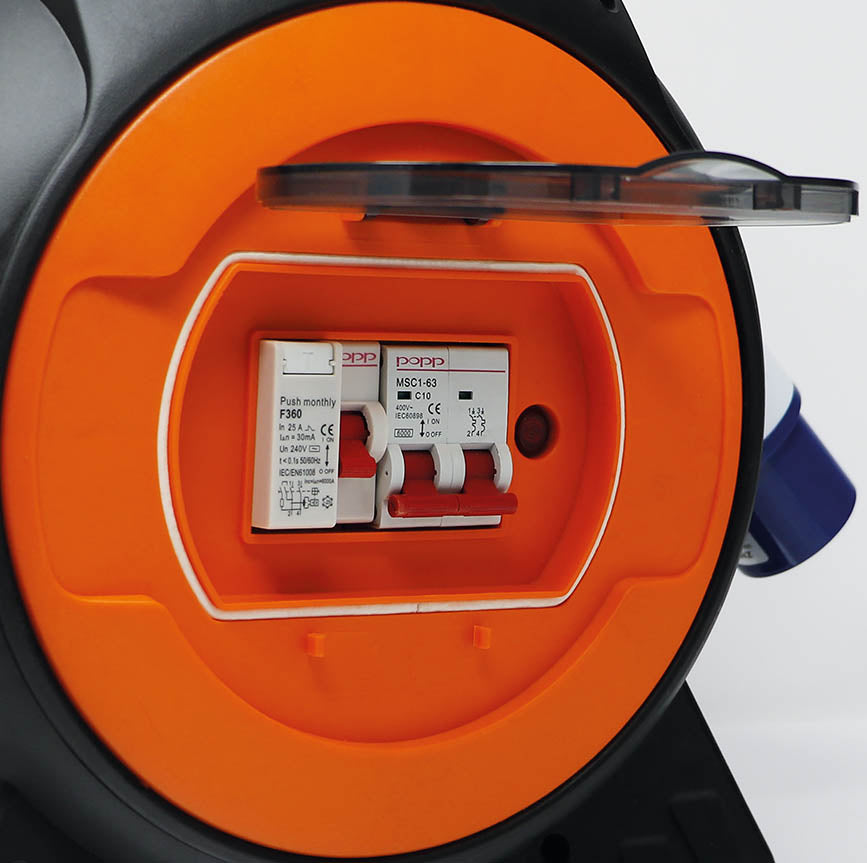

To guarantee safe and reliable device operation it is essential to ensure the correct operation of the RCCB before each use.

Start by removing all devices connected to either the BS1363 or USB sockets. Connect the unit to a 230VAC source and ensure the switches on both MCB and RCCB are in the ‘ON’ position.

Correct operation of the RCCB is confirmed by the switch of the RCCB immediately moving to the ‘OFF’ position the moment the test button (marked ‘T’) is depressed.

If the RCCB does not switch off, or cannot be reset to the ‘ON’ position after testing, it should be considered defective; consult the services of a qualified electrician or if still within the warranty period return the unit to its original place of purchase for exchange.

Instructions for use

Always FULLY unwind the cable from the drum before use! Failure to do this will result in the cable overheating.

Once connected to an AC supply and both RCCB and MCB are in the ‘ON’ position the red status LED will illuminate and the unit is ready for use.

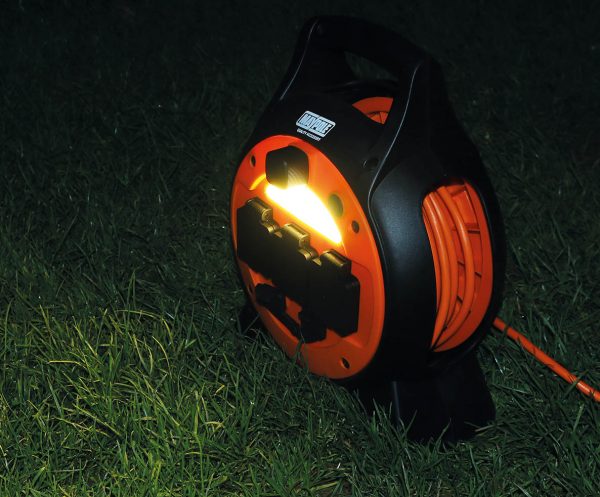

LED lamp

The LED torch can be activated by depressing the power button on the face of the unit. Note that an AC supply must

be present for the lamp to operate.

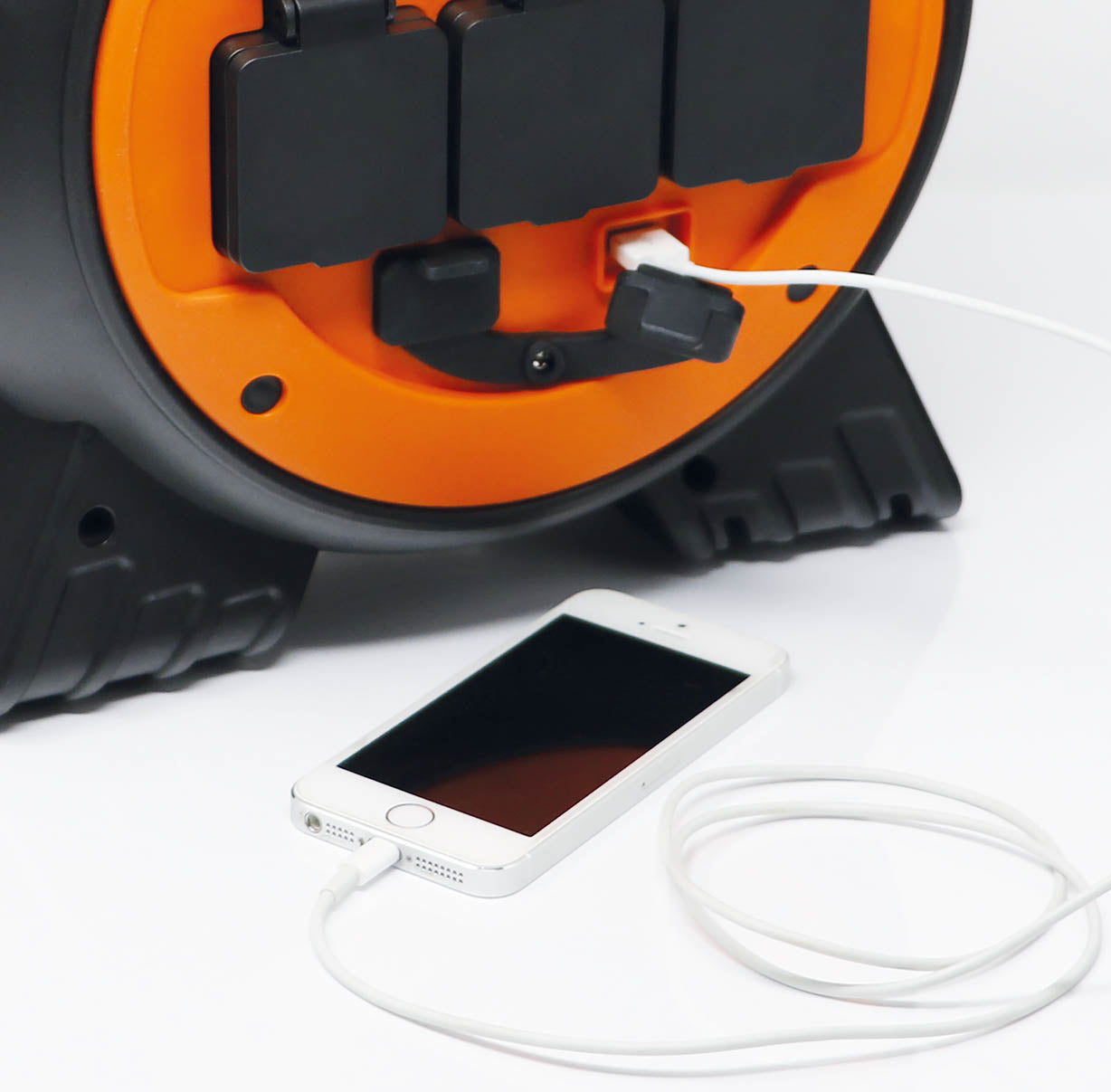

USB power

When the red status LED is illuminated 5VDC will be present at both USB sockets. Whilst the LED lamp is deactivated,

each socket will support loads of up to 2.1A. With the LED lamp activated, each socket can support a load of 1.6A
